Project title: Pressurized hot water heat storage tank with a volume of 70 m³
Investor: FUNDA d.o.o.
Location: Lepoglava, Croatia
Construction completion: 2017
Project description

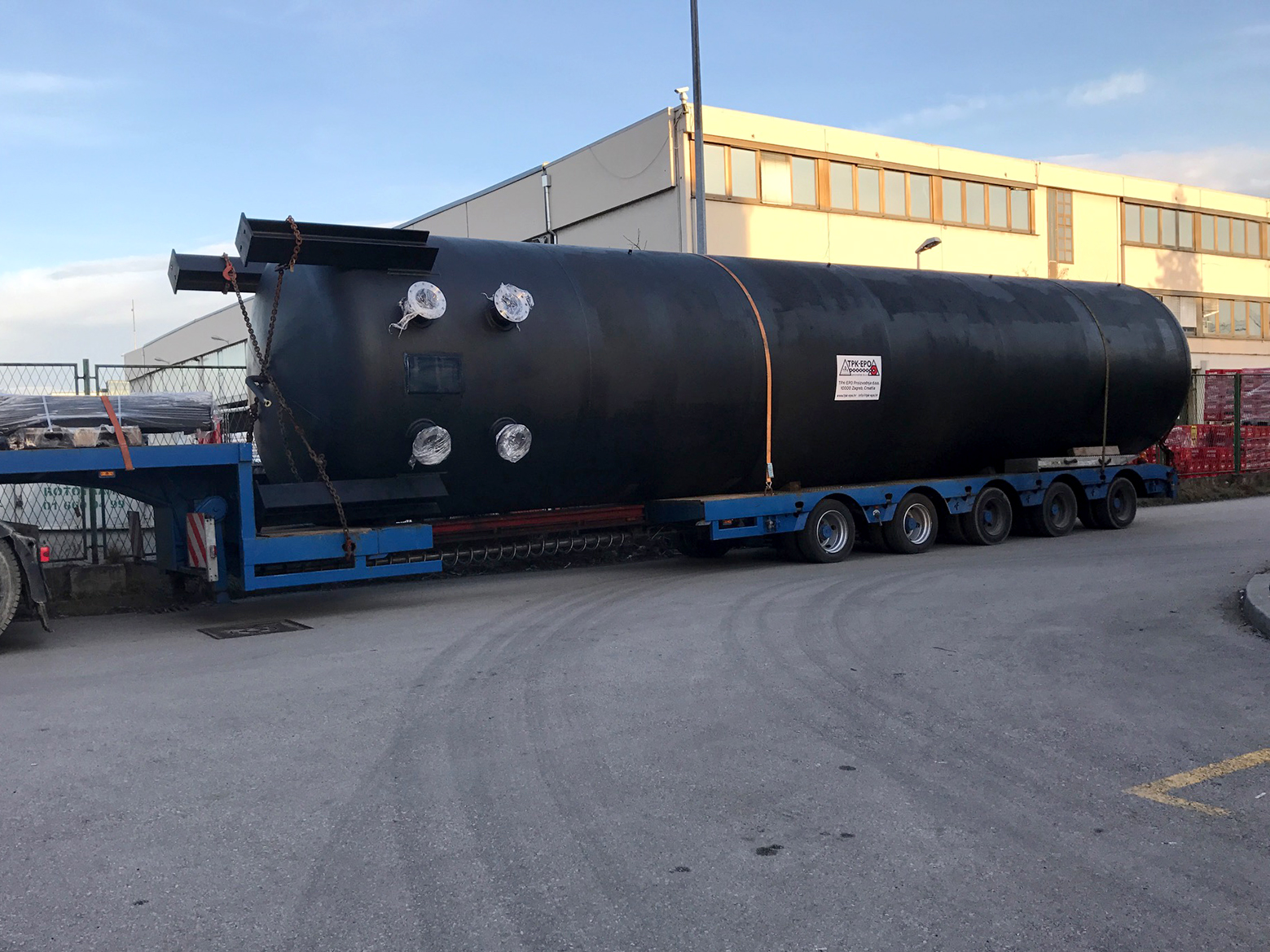

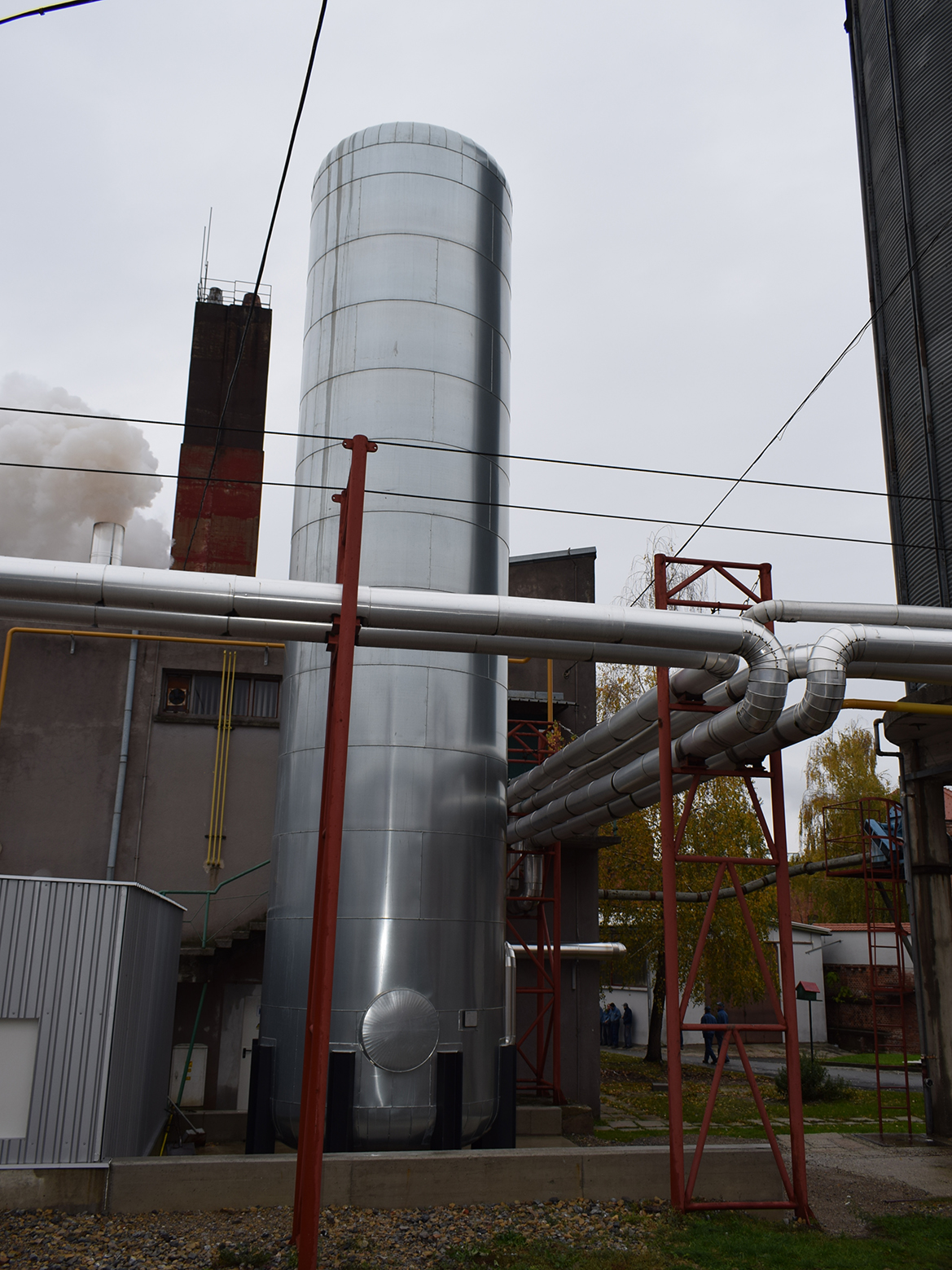

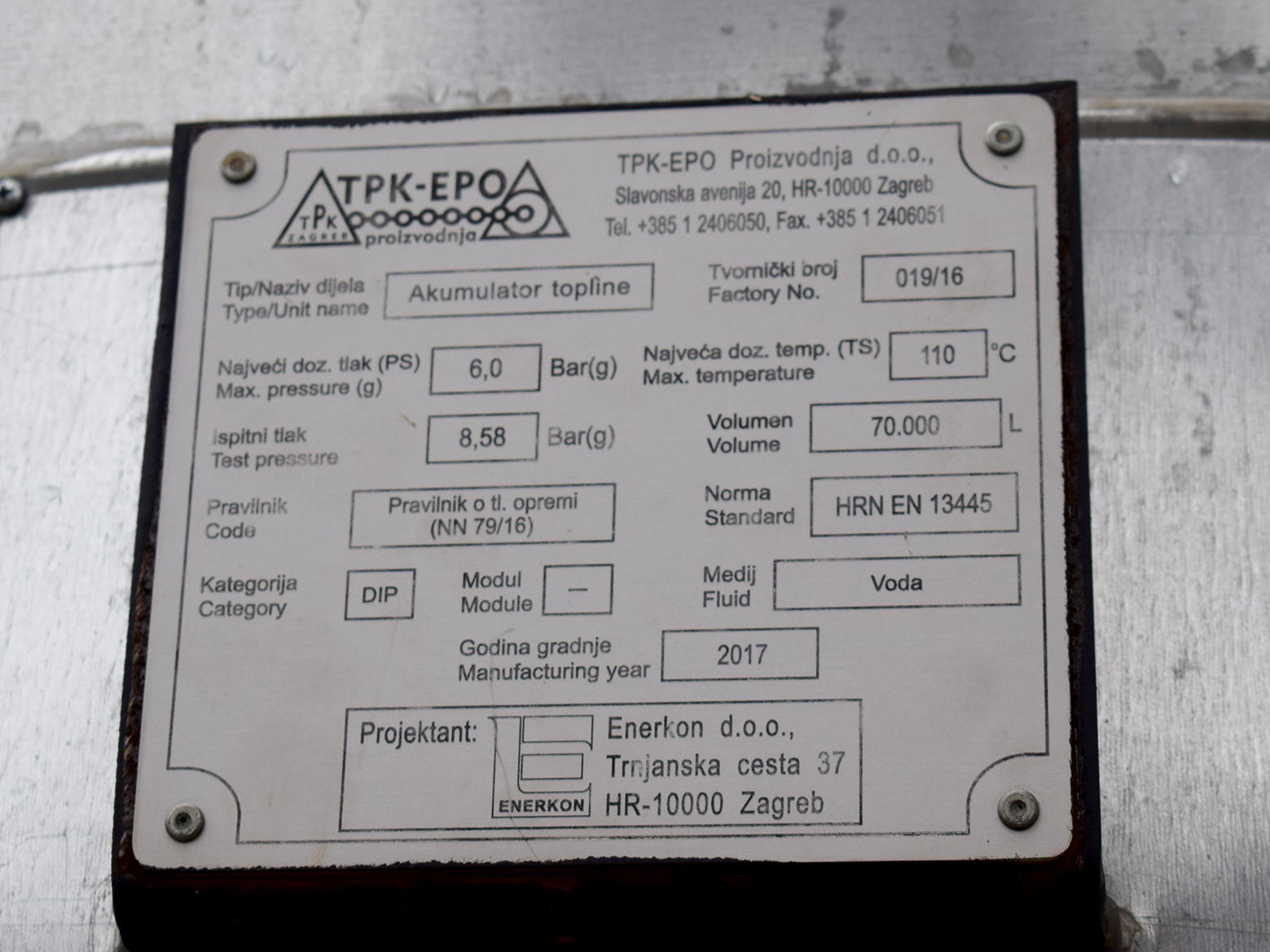

Workshop documentation of a heat storage tank with a volume of 70 m³ was prepared, maximum allowed pressure and temperature: 6 barg and 110°C, for installation in a new biomass boiler hot water plant in Lepoglava. The heat storage tank is of vertical design, built of steel plates bent into a sheet and two floors, with all the necessary connections for the boiler and consumers, temperature and pressure measuring devices, vent, drain, vacuum switch and inspection opening.
Enerkon participated in the project through following activities:
- Workshop, technical documentation
- Commissioning
